3. Tilt sensor (1 direction tilt detection)


Tilt sensor (1 direction tilt detection) specification  ●Tilt sensor (1 direction tilt detection) Click here for example for use

K300 ( Normally opened type)

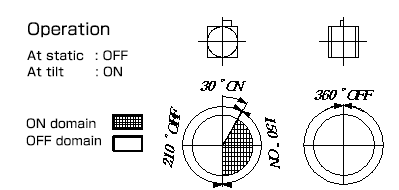

It is 1 direction tilt detection sensor when gilt ball between electrode A and B has tilt to the certain 1 direction appointed beforehand, it turns ON, and it turns OFF when it backs to level. -World smallest class-

-Patent applied-
-Design resignation applied-
 Model K300
Operation detection angle 30 degree
Contact point capacity DC6V. 1μA~5mA
Using temperature range -30~80℃
Durability X axis Vibrate more than 100,000 times
Airtight Waterproofing protection level Level5
Feature ●Gilt ball contact method
●Using no pollution material

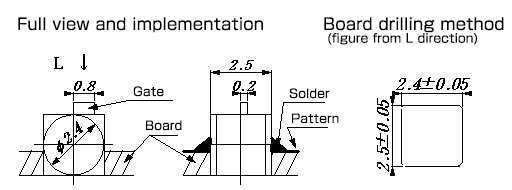

●Mounting to board OK
●Automatic recovery to level position
Purpose Liquid crystalline clock

You can see operating demonstration of K300 by movie.
- Click here -



Purpose Automatic lighting for digital watch It is tilt detection sensor which back light turns on automatically when digital watch has tilt 30 degrees to your body, and become easy to see letters.
Remote control starter for car It is safety sensor which remote-control starter does not work when bonnet of the car opens.
Attitude detection of toy robot When the robot takes posture with certain angle, make it do another work.


Analog sensor (normally opened type) list

Tilt sensor
Tilt sensor (horizontally 360-degree tilt detection)

model:KOF203-30S / KOF203-30D
Tilt sensor
Tilt sensor (horizontally 360-degree tilt detection )

model:KOF530-20S、KOF530-20D
Tilt sensor
Tilt sensor (1 direction tilt detection)

model:K300
purpose purpose purpose
Burglar proof for vending machines Power saving sensor Automatic lighting for digital watch
Burglar proof for cash box, art object etc Attitude detection sensor For car remote control starter
    Attitude detection for toy robot
