4.Tilt sensor(horizontally 360-degree tilt detection)


Tilt sensor (horizontally 360-degree tilt detection)   ●Tilt sensor (horizontally 360-degree tilt detection) Click here for example use

KON204-80S、KON204-80D ( Normally closed type )

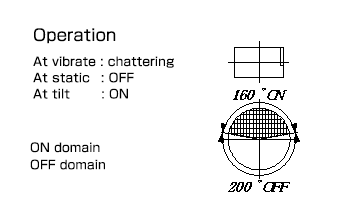

It is mechanical sensor which ball is on the mortar, and when it has tilt bigger than the angle of mortar, it turns ON, and when the vibration occurs, chattering (Pulse: reputation of ON/OFF) will occur.

-Patent applied-
-Design resignation applied-
 Model KON204-80S、KON204-80D
Operation detection angle 80 degree
Contact point capacity DC6V.1μA~30mA
Using temperature range -30~80℃
Durability XYZ axes Vibrate more than 100,000 times
Airtight Waterproofing protection level Level5
Feature ●Gilt ball contact method
●Using no pollution material
●Mounting to board OK
●Automatic recovery to level position
●Free design for tilt angle
Purpose Industrial remote control

You can see operating demonstration of KON204-80D (installation example to horizontal board) by movie.

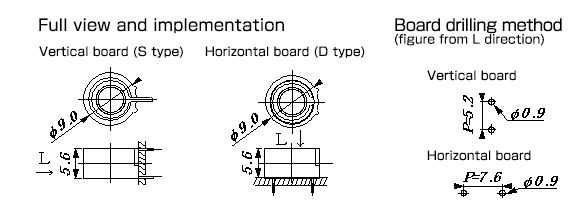

Product size Φ 9.0mm x5.6mm
- Click here -




Purpose Industrial remote control panel It is automatic power supply switch sensor which automatically turns on power supply only when the control panel has tilt, and even if you touch the control panel, it does not work at not in use.
Fall detection At transport the product, for check having fall or not.

Illustration



Analog sensor (normally closed type) list


Tilt sensor (horizontally 360-degree tilt detection)

model:KON204-80S / KON204-80D
傾斜センサー(アナログセンサ デバイス)
Tilt sensor (1 axis 2 directions tilt detection)

model:KSN530-20S / KSN530-20D
傾斜センサー(アナログセンサ デバイス)
Tilt sensor (3 axises high sensitive vibration detection)

model:MN530-02S
purpose purpose purpose
Industrial remote-control control panel Acceleration detection Power saving sensor for key less entry
Fall detection Length and width detection for camera Automatic lighting for bicycle
  Attitude detection for wall hanging type alarm Safety confirmation for the guard
