1.Tilt sensor (horizontally 360-degree tilt detection)


Tilt sensor (horizontally 360-degree tilt detection) specification  ●Tilt sensor (horizontally 360-degree tilt detection) Click here for example for use

KOF203-30S 、KOF203-30D (Normally opened type)

It is mechanical sensor which ball is on the mortar, and when it has tilt bigger than the angle of mortar, it turns ON, and when the vibration occurs, chattering (Pulse: reputation of ON/OFF) will occur.

-Patent applied-
-Design resignation applied-
 Model KOF203-30S 、KOF203-30D
Operation detection angle 30degree
Contact point capacity DC6V. 1μA~30mA
Using temperature range -30~80℃
Durability XYZ axes Vibrate more than 100,000 times
Airtight Waterproofing protection level Level5
Feature ●Dielectric ball contact method
●Using no pollution material
●Automatic recovery to level position
Purpose Burglar proof for vending machine, security camera angle change detection

You can see operating demonstration of KOF203-30D (installation example to horizontal board) by movie. Product size Φ 9.0mm x5.6mm
- Click here -




purpose Burglar proof for vending machine It is trigger sensor to threaten by alarm or report to the security firm, if detecting impact, shaking, tilt when someone is going to steal cash or product in the vending machine.
Burglar proof for cash box and art object It is security sensor which install on the back of valuable and sounds alarm when someone is going to steal and detecting vibration and tilt change.

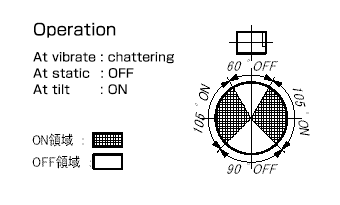

Illustration Operation

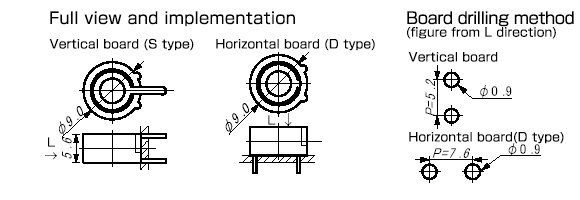

Full view and implementation
KOF203-30S
Download
KOF203-30D
Download


Analog sensor (normally opened type) list

Tilt sensor
Tilt sensor (horizontally 360-degree tilt detection)

model:KOF203-30S / KOF203-30D
Tilt sensor
Tilt sensor (horizontally 360-degree tilt detection )

model:KOF530-20S、KOF530-20D
Tilt sensor
Tilt sensor (1 direction tilt detection)

model:K300
purpose purpose purpose
Burglar proof for vending machines Power saving sensor Automatic lighting for digital watch
Burglar proof for cash box, art object etc Attitude detection sensor For car remote control starter
    Attitude detection for toy robot
