6. Vibration sensor (3 axes high sensitive vibration detection)


Vibration sensor (3 axes high sensitive vibration detection) specification  ●Vibration sensor (3 axes high sensitive vibration detection)Click here for example use

MN530-02S (Normally closed type)

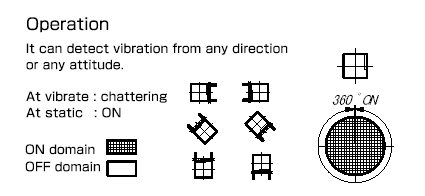

Electrode A and B always contacts through the ball and is attached to symmetry from the center of electrodes. It is mechanical multi detection vibration sensor that gives off consecutive signals in standstill, and chatter (repetition of pulse :ON/OFF) in vibration.

-Patent applied-
-Design resignation applied-
 Model MN530-02S
Operation detection angle More than 5Hz .30 gal (Depends on direction)
Contact point capacity DC6V. 1μA~10mA
Using temperature range -30~80℃
Durability XYZ axes Vibrate more than 100,000 times
Airtight Waterproofing protection level Level5
Feature ●Gilt ball contact method
●Using no pollution material
●Mounting to board OK
●Automatic recovery to level
●Vibration detection from all directions
Purpose Power saving for hand held equipment


You can see operating demonstration of MN530-02Sby movie.
- Click here -


Purpose Power saving sensor for key less entry It is the system to unlock without using key for car, office, home door, and is used for power saving such as switch on only in vibration and automatically switch off in standstill.
Automatic lighting for bicycle e night when detecting vibration of bicycle more than certain fixed period of time.
Safety confirmation for the guard It is security sensor that confirms vibration when the guard patrol, and detects stationary state if the guard was not able to move with unexpected accidents and inform the headquarters by radio.

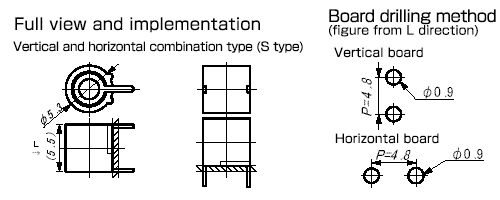

Illustration


Analog sensor (normally closed type) list


Tilt sensor (horizontally 360-degree tilt detection)

model:KON204-80S / KON204-80D
傾斜センサー(アナログセンサ デバイス)
Tilt sensor (1 axis 2 directions tilt detection)

model:KSN530-20S / KSN530-20D
傾斜センサー(アナログセンサ デバイス)
Tilt sensor (3 axises high sensitive vibration detection)

model:MN530-02S
purpose purpose purpose
Industrial remote-control control panel Acceleration detection Power saving sensor for key less entry
Fall detection Length and width detection for camera Automatic lighting for bicycle
  Attitude detection for wall hanging type alarm Safety confirmation for the guard
