2.Tilt sensor(horizontally 360-degree tilt and vibration detection)


KOF530-20S、KOF530-20D (Normally opened type)

It is tilt and vibration sensor that size is φ5.3mmx5.5mm when gilt ball between electrode A and B has tilt on the certain angle appointed beforehand, it turns ON, and it turns OFF when it backs to level.

-Patent applied-
-Design resignation applied-
Tilt sensor Model KOF530-20S、KOF530-20D
Operation detection angle 20degree
Contact point capacity DC6V. 1μA~10mA
Using temperature range -30~80℃
Durability XYZ axes Vibrate more than 100,000 times
Airtight Waterproofing protection level Level5
Feature ●Gilt ball contact method
●Using no pollution material
●Mounting to board OK
●Automatic recovery to level position
●Free design for tilt angle
Purpose Burglar proof for equipment

You can see operating demonstration of KOF530-20S (installation example to horizontal board) by movie.
Product size Φ 5.3mm x5.5mm
- Click here -



Purpose Energy saving sensor It is sensor that when the horizontally 360-degree moving control equipment is at standstill, main power supply turns OFF, and to be it as leaking current.
Attitude detection sensor It detects attitude angle of the toy and make it do another work even if it is still same attitude, after pasting setting time.

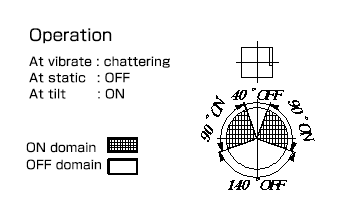

Illustration Operation

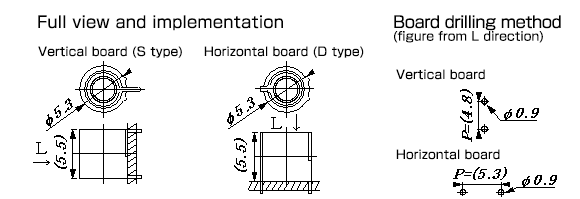

Full view and implementation

Analog sensor (normally opened type) list

Tilt sensor
Tilt sensor (horizontally 360-degree tilt detection)

model:KOF203-30S / KOF203-30D
Tilt sensor
Tilt sensor (horizontally 360-degree tilt detection )

model:KOF530-20S、KOF530-20D
Tilt sensor
Tilt sensor (1 direction tilt detection)

model:K300
purpose purpose purpose
Burglar proof for vending machines Power saving sensor Automatic lighting for digital watch
Burglar proof for cash box, art object etc Attitude detection sensor For car remote control starter
    Attitude detection for toy robot
