CMN200-K (Omnidirectional vibration sensor, For evaluation with board)

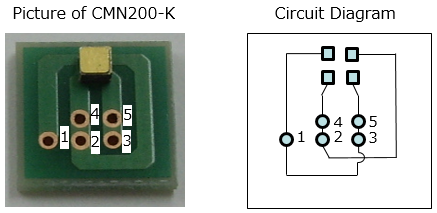

-Evaluation Board

The board has mounted CMN200 to carry out evaluation of the sensor.

Part Number: CMN200-K

PCB Size : 10mm x 10mm
Terminal hole Size : φ1.2 mm
Terminal hole Pitch : 1.5 mm (2-4,3-5)

Note:
- Electrode numbers are not printed on the PCB.
- Orientation of the sensors mounted on the substrate(the position of A/B electrode) is optional.
- There is not polarity to the sensor.

Our product which is"1.5mm corner tip ultra small multi direction tilt detection sensor” won the special prize of the Tokyo venture technology grand prix in 2004 and was commended by Ishihara Tokyo Governor in commendation ceremony of "Tokyo industry exhibition 2004" conducted on October 22, 2004.
