Introduction example for sensor

Analog sensor has many good points (easy energy saving, and integration) that digital sensor does not have. We can advise you more about good point of analog sensor, so please feel free to ask us.
Follows are introduction example.

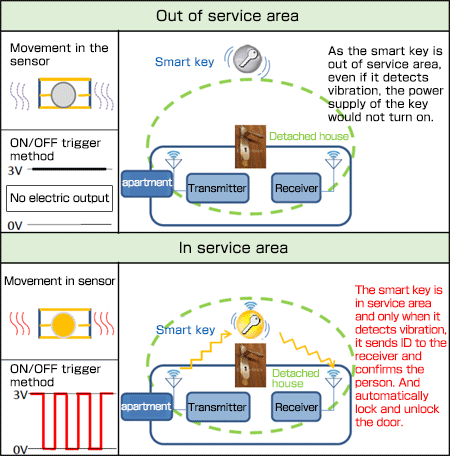

(1) Key less entry system (Electronic key)
It is automatic mechanism to lock and unlock the door without using the key.
Example for product:3 axes direction high sensitive vibration detective sensors
Order from: Key maker

Overview of active tag-type key less entry system
Role of vibration sensor

1. As trigger which replies and transmits confirmation of the vibration to receiver by chattering after electrificating circuit of the smart key.

2. As trigger which order to anticipate when it judges that there is no vibration.

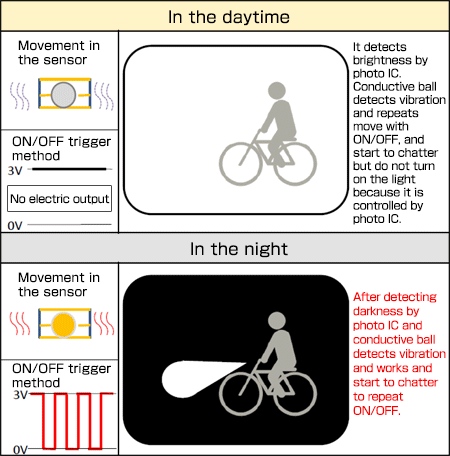

(2) Automatic lighting for bicycle

Order from: Bicycle maker

Overview of active tag-type key less entry system
Role of vibration sensor

As trigger to light automatically when it detects vibration in the night (detect by photo IC)

(3) Active type RFID tag
As example of use which built in vibration sensor into active RFID tag, setting up the gate at the place that you want to improve security such as factory and office and permit to enter only specific person and you can identify the person who is in the area by installing reader. If factory worker is not able to move in accidents, you can check that point and see with PC by connecting with location information. In addition, it can be used in cases such as taking care of child and old man, and managing the display of an art museum and the museum.


Others

・ International courier service tag (3 axes direction high sensitive vibration detective sensor)
・ Watching for fall down(2 axes direction tilt detection sensor)
・ Lighting back light of the liquid crystalline watch(1 axis 1 direction tilt detection sensor)
・ Security for remote-control engine starter (1 axis 1 direction tilt detection sensor)
・ Security for vending machine (2 axes direction tilt detection sensor)
・ Breaker seismoscope (3 axes direction vibration detection sensor)
・ Machine abnormality vibration detection (3 axes direction high sensitive vibration detection sensor)
